Aug. 25, 2023

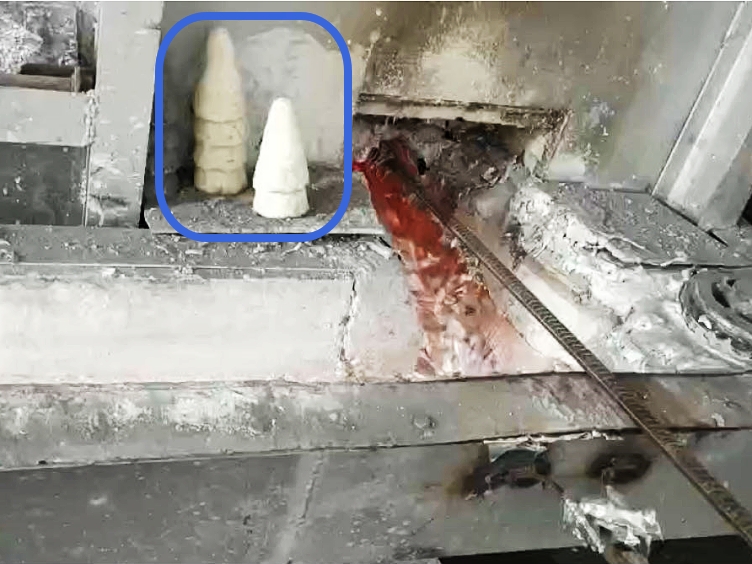

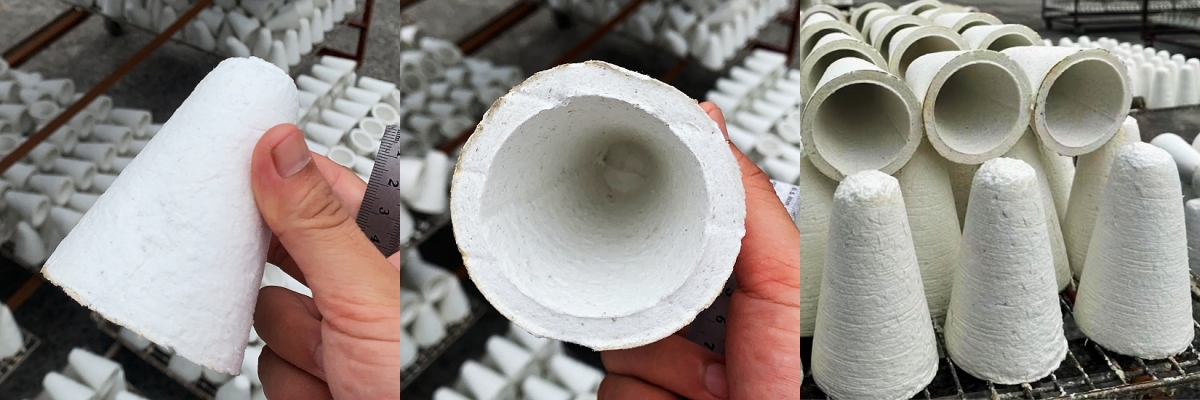

Aluminum silicate plugging sleeve is also named Silicon Fiber Carpet Sleeve/Asbestos plug and Insulation cap for the outlet of the aluminum-copper-zinc smelting furnace.
It is mainly made of high-grade aluminum silicate ceramic fibers and other formulas by vacuum forming.
Features:
● Tough texture,
● High compressive strength,
● Low heat storage and low heat loss.
Applications:
It is suitable for aluminum, copper and zinc centralized melting furnaces, refining furnaces, static furnaces, and electric furnaces.
Functions:
The excellent heat insulation and sealing effect of the water outlet makes the casting process of aluminum-copper-zinc and aluminum-copper-zinc alloy more convenient, safer and more reliable.
Technical Data Sheet:
Item | Common grade | Standard grade | High pure grade | High aluminaGrade | Zirconium grade |
Working temperature | ≤1000°C | ≤1050°C | ≤1100°C | ≤1200°C | ≤1350°C |
AL2O3 | 44% | 46% | 47-49% | 52-55% | 39-40% |
AL2O3+SiO2 | 96% | 97% | 99% | 99% | 82-84% |
ZrO2 | - | - | - | - | 15-17% |
AL2O3+SiO2+ZrO2 | - | - | - | - | 99% |
Fe2O3 | ≤1.2% | ≤1.0% | ≤0.2% | ≤0.2% | ≤0.2% |
Na2O+K2O | ≤0.5% | ≤0.5% | ≤0.2% | ≤0.2% | ≤0.2% |
Certificate | ISO9001:2015 |
