Why Fiberglass Cap Filters Are Required for Automotive Aluminum Wheel Hub Casting?

Automotive aluminum wheel hubs are critical safety rotating components. They bear vehicle load, impact and cyclic fatigue stress during driving. Even tiny internal defects may lead to wheel cracking and serious safety hazards. This is the core reason fiberglass cap filters are mandatory in aluminum wheel low-pressure casting.

1. Remove oxide films, slag and non-metallic inclusions Molten aluminum easily reacts with air to form aluminum oxide films. During melting, transferring and pouring, broken oxide fragments, refractory debris and slag will suspend in the melt. If these impurities flow into the wheel hub cavity, they become internal inclusions. These inclusions act as fatigue crack initiation points. Under repeated road vibration and load, cracks expand gradually. The fiberglass cap filter intercepts large slag particles mechanically and adsorbs fine micro-inclusions on fiber surfaces before aluminum liquid enters the mold.

    2. Stabilize molten aluminum flow and suppress turbulence & secondary oxidation Without filtration, molten aluminum rushes into the sprue with turbulent surging flow. The churning liquid rolls over and entraps air, generating new double oxide film defects (bifilms). These hidden defects create micro-cavities and porosity inside the wheel hub. The unique cap structure slows down incoming aluminum flow, breaks turbulent jets and converts chaotic flow into steady laminar flow. It reduces air entrapment and prevents secondary oxidation inside the mold cavity.

    3. Reduce casting defects and pass mandatory X-ray inspection Aluminum wheels must undergo 100% X-ray non-destructive testing. Inclusions, porosity, cold shuts and micro-shrinkage are not allowed for safety-grade wheels. The fiberglass cap filter greatly cuts reject rates of these defects, raises X-ray pass rate and stabilizes batch quality.

    4. Improve mechanical performance and fatigue life of wheel hubs Cleaner aluminum matrix with fewer inclusions delivers more uniform microstructure, higher tensile strength and longer fatigue life. Wheel hubs can meet OEM impact test and rotating bending fatigue requirements.

    5. Optimize machinability and lower production cost Inclusions are hard and abrasive. When machining wheel hub mounting surfaces and bolt holes, hard impurities wear CNC cutting tools quickly. Filtered castings have fewer hard inclusions, extending tool service life and lowering machining scrap.

    6. No metal contamination and convenient scrap recycling Traditional metal wire mesh filters release iron impurities into molten aluminum, degrading alloy mechanical properties. Fiberglass is chemically inert with aluminum melt and will not pollute aluminum alloy. After casting, fiberglass floats on the melt during runner/gate scrap remelting and can be easily skimmed off. Riser and sprue scrap can be recycled directly without complicated separation treatment.

    7. Cap design fits low-pressure casting sprue cup perfectly Unlike flat fiberglass screens, the one-piece cap shape seats tightly inside the sprue cup, preventing molten metal bypassing the filter. Larger 3D filtering area can hold more slag without fast clogging. Installation is simple and no extra fixing holders are needed, which matches high-volume wheel mass production.

Product Introduction

This cap-style filter is fabricated from high-performance fiberglass media, engineered specifically for molten metal filtration in the casting of automotive parts, including wheel hubs, brake calipers, engine brackets, steering knuckles and other safety-critical automotive castings. It is a disposable foundry filter installed inside the gating system to trap non-metallic inclusions, slag, oxides and dross within molten aluminum, iron and other casting alloys before the liquid metal fills the mold cavity.

Unlike flat fiberglass filter screens, the cap filter adopts an integrated cup/cap geometry. It fits directly onto the sprue base or sprue cup, acting as both a filter and a flow stabilizer. It eliminates the need for separate filter holders and reduces molten metal turbulence during pouring.

Material & Structural Features

Fiberglass Medium

The substrate consists of continuous alkali-free fiberglass, bonded with high-temperature resistant inorganic binders. No organic components that release heavy smoke or gas at casting temperatures. The interwoven fiber network forms uniform, tortuous micropores. It retains fine slag particles while maintaining stable permeability for molten metal.

● Temperature resistance: suitable for aluminum alloy casting (700–760°C); customized grades available for higher-temperature ferrous castings.

● Low thermal shock resistance: does not crack or shed fibers upon sudden contact with hot molten metal.

● Minimal fiber shedding: specially reinforced surface prevents loose fiberglass from detaching and contaminating the casting.

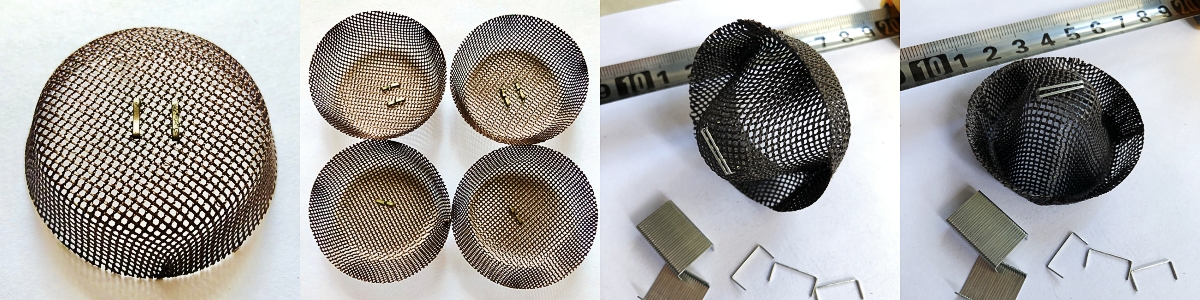

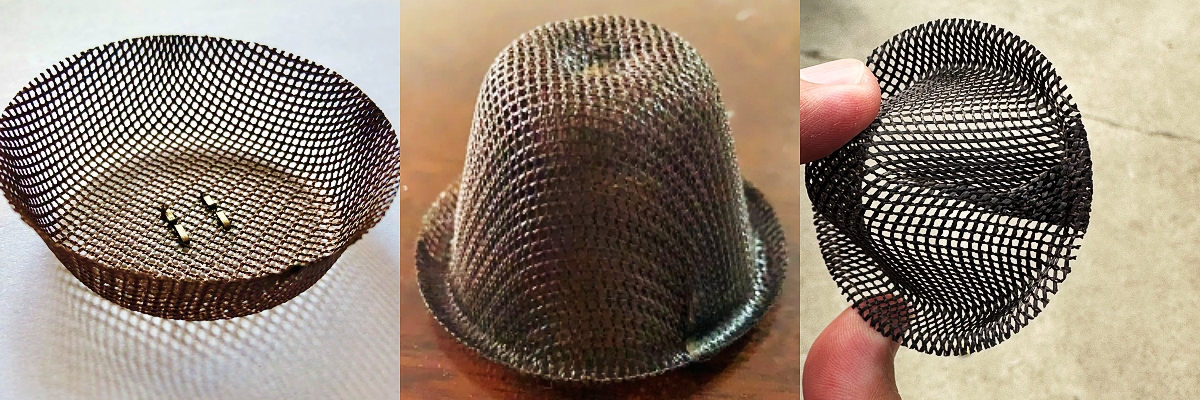

Cap Shape Design

The filter is a one-piece hollow cap structure with a circular or square base and raised side walls. Common specifications match standard automotive casting sprue cup dimensions.

● The side wall slows down incoming molten metal and dampens surging flow.

● The bottom porous face performs primary filtration.

● It guides molten metal to flow evenly into the downsprue, reducing air entrapment.

Core Functions in Automotive Wheel Hub & Component Casting

Inclusion Removal

Captures oxide films, refractory fragments, slag and intermetallic particles in molten aluminum. Wheel hubs are rotating safety parts; tiny inclusions can cause fatigue cracking during vehicle operation. The filter greatly reduces such defects.

Flow Lamination & Turbulence Control

The cap structure converts chaotic, turbulent pouring flow into smooth laminar flow. Less agitation means less new oxide formation, lowering porosity and oxide inclusion scrap rates for wheel hubs.

Reduction of Casting Defects

Effectively cuts reject rates for: oxide inclusions, porosity, blisters, cold shuts and surface blemishes. It improves mechanical consistency, tensile strength and fatigue performance of finished automotive castings.

Stable Production & Machinability

Cleaner castings require fewer machining repairs. Post-casting X-ray inspection pass rates for wheel hubs rise significantly. It also reduces tool wear during CNC machining of hubs and other automotive parts.

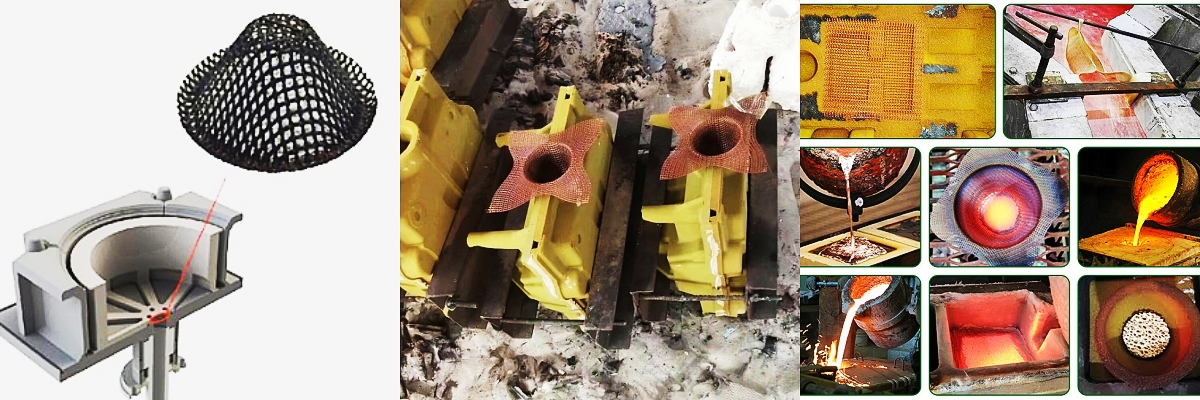

Application Process

1. Place the fiberglass cap filter into the sprue cup at the top of the mold before pouring. Ensure full seating with no gaps between the filter edge and the cup.

2. Pour molten alloy into the sprue cup; molten metal passes through the porous fiberglass cap, with impurities intercepted on the filter's upstream surface.

3. Filter remains in the gating system after solidification. It is removed together with the sprue and runner during the casting fettling process.

Technical Advantages

✅ Integrated cap design: combines filtration + flow regulation, simpler mold setup than flat filters.

✅ High thermal stability: withstands rapid heat shock from hot molten aluminum.

✅ Consistent permeability: stable metal filling speed across batch production.

✅ Low gas evolution: no harmful gas emissions, avoids gas porosity defects.

✅ Customizable dimensions and porosity grades: to match different casting lines and product requirements.

Typical Applications

Automotive aluminum wheel hubs, brake parts, suspension components, engine structural castings and other safety-related automotive castings.
