Three Kinds Of Fiberglass Filter Mesh For Aluminum Casting Filtration

Jul. 02, 2025

Fiberglass Filter Mesh is weaved by alkali-free E-glass fiberglass yarn.

Fiberglass filter mesh is used in molten aluminium launder or holding furnace sprue, transferring from ladle to holding furnace etc.

Effectively remove the inclusions and aluminum oxide films from molten aluminium liquid.


Weaving machines to make such cloth in our factory:

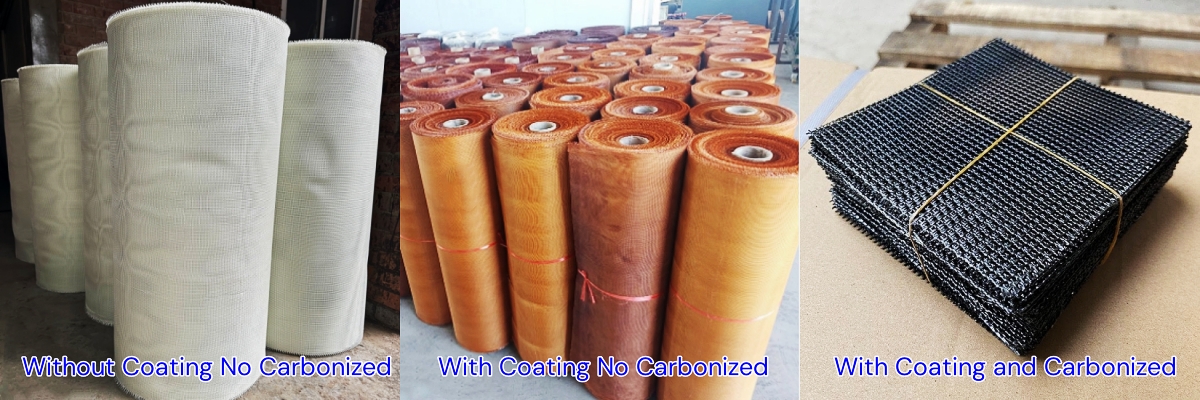

There are THREE kinds of fiberglass filter mesh:

ColorCoatingCarbonizedSmokeless & Odorless & Flameless
WhiteNoNoYes
Brown or YellowYesNoYes
BlackYesYesNo


Three Kinds Of Fiberglass Filter Mesh For Aluminum Casting Filtration


It is woven with special high-twist & high-strength alkali-free fiberglass yarn, coated with special resin, carbonized by high temperature and special post-treatment.

The maximum temperature resistance can reach 900 ℃.



Widely used in automobile and motorcycle wheels, cylinder pistons, aluminum rods, aluminum materials, aluminum ingots, aluminum plates and precision casting of all types of aluminum alloy casting.



New patented product "Smokeless & Odorless & Flameless" Effectively remove impurities, reduce turbulence and eliminate air bubbles, thereby improving the quality of castings and reducing costs. At the same time does not pollute the aluminum liquid and affect the chemical properties of the metal. Therefore, aluminum waste containing the filter mesh, aluminum liquid from sprue and the riser can be directly returned to the furnace for remelting, greatly reducing costs.


Three Kinds Of Fiberglass Filter Mesh For Aluminum Casting Filtration


Application type:


● Filter cloth in roll (white & brown, without/with coating) : It can be fixed in the aluminum liquid flow tank, used for aluminum ingot, aluminum rod, aluminum strip and other continuous casting workshop to purify aluminum liquid.

● Cutting mesh (brown, coated with resin): Square, round, fan and other heteroideus mesh cutted just according to client’s requirements. Used for filtering aluminum castings and placed in the gating system.

● Cylinder, cap and other special shapes (brown or black, coated with resin or carbonized): used for low pressure casting, such as aluminum alloy wheels, engine cylinder head and so on.

● Smokeless filters (black carbonization treatment): no combustion, smokeless, low gas output during the filtration process, for high quality requirements of casting production, such as aluminum alloy piston.
