Soft Carbon Fiber Filter Bag

What is Carbon Fiber?

Carbon fiber is mainly composed of carbon elements, with high temperature resistance, friction resistance, thermal conductivity and corrosion resistance and other characteristics.

● It is of fiber shape, soft and it can be processed into a variety of fabrics.

● It is high strength and modulus along the fiber axis direction because of its graphite microcrystalline structure along the fiber axis preferred orientation.

● High specific strength and modulus are due to low density of Carbon fiber.

● The main use of carbon fiber is as a reinforcement material, composited with resin, metal, ceramics and carbon, to manufacture advanced composite materials.

Carbon fiber refers to high-strength and high-modulus fibers with a carbon content of more than 90%.

● Its high temperature resistance ranks is the  first of all chemical fibers.

● It is made of acrylic fiber and viscose fiber by oxidation and carbonization at high temperature.

What is Carbon Fiber Cloth?

Carbon fiber cloth is also known as carbon fiber cloth, carbon fiber braided cloth, carbon fiber prepreg cloth, carbon fiber reinforced cloth, carbon fiber fabric, carbon fiber tape, carbon fiber sheet (prepreg cloth), etc. Carbon fiber reinforced fabric is a one-way carbon fiber reinforced product, usually made of 12K carbon fiber yarn.

Carbon fiber cloth and matching impregnated adhesive are used together to form carbon fiber composite material, which can form a complete carbon fiber cloth sheet reinforcement system.

Techinical Data Sheet

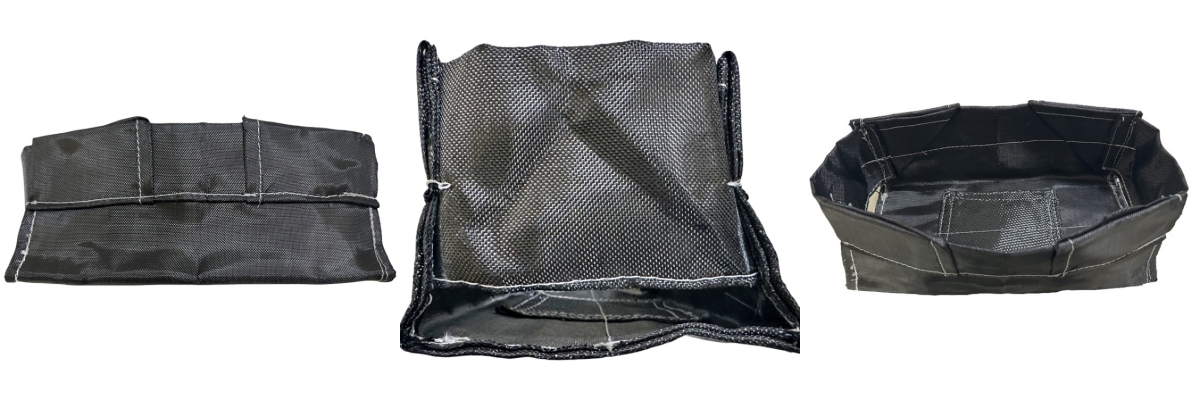

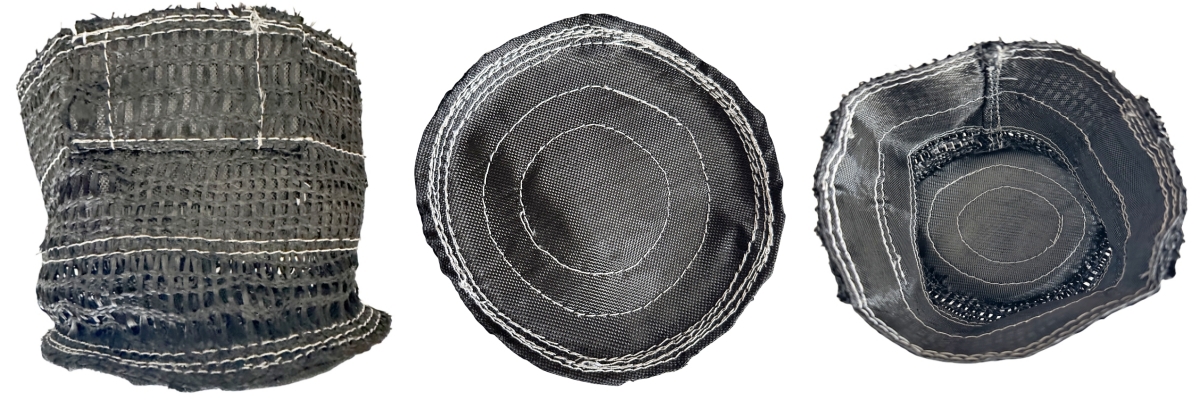

Round & Rectangle Soft 100% Carbon Fiber Bag

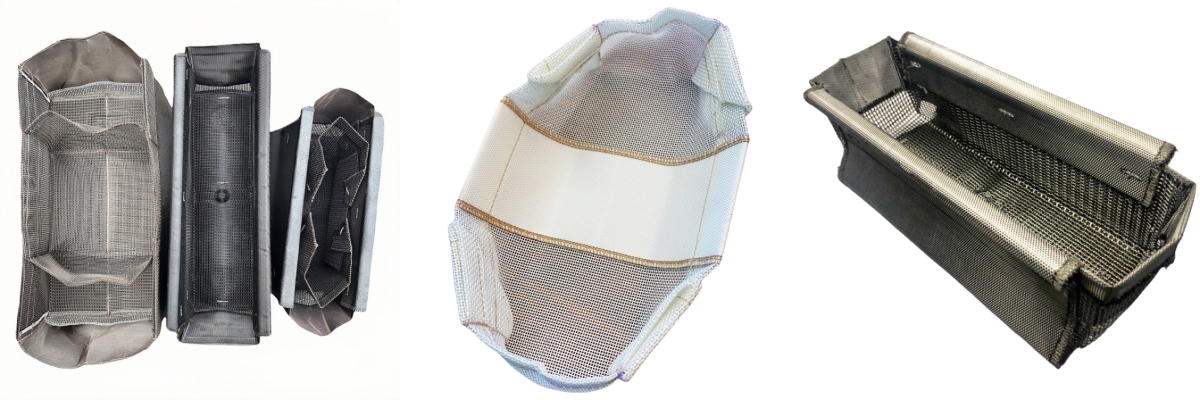

Fiberglass TF Combo Bag

Fiberglass Filtration & Shunt Combo bag, also named fiberglass TF Combo Bag, which is weaved by special high-twist & high-strength alkali-free fiberglass yarn, special post-treatment, coated with phenolic resin and suitable "carbonized" by high temperature.

Applications:

● Apply to filter large diameter aluminum ingot and billet, rectangular aluminium slab, and aluminum-alloy casting parts.

● Improve the temperature distribution of molten metal and control flow of aluminium vertical direct.

● Improve working environment, bags will be producing very little smoke, fumes or flame when molten aluminium flow inside, but it is harmless, no any affect to staff.

● Filter molten metal and decrease in non-metallic inclusions and oxide films in liquid metal.

● Improve mechanical quality of aluminum casting product.

● Improve the hardness of aluminum casting product with more average surface hard and bending strength.

Comparing to other filter bags, it does not affect the component of aluminum alloy, and with good filtration effect, high temperature resistance, high strength, excellent acid and alkali resistance, non-stick aluminum, non-slagging, non-peeling, as well as easy installation.

OEM Service

This bag can be customized according to client's sample and drawing. Also, your carton design, logo, and package can be OEM.
