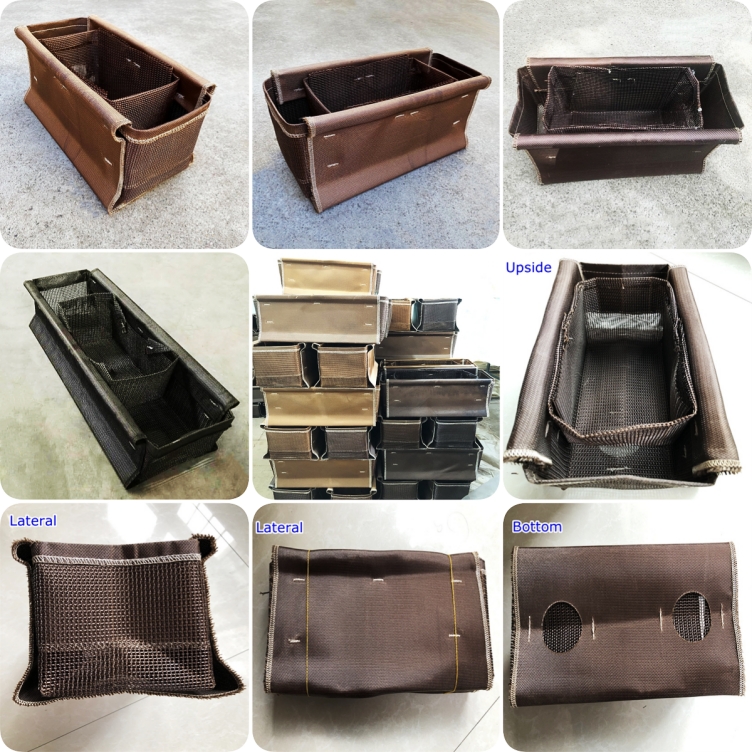

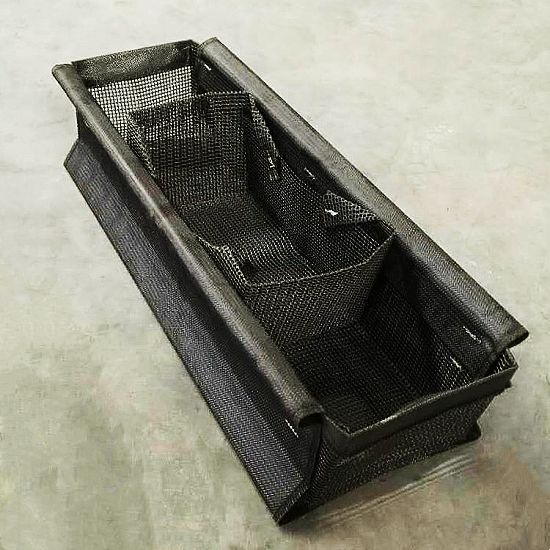

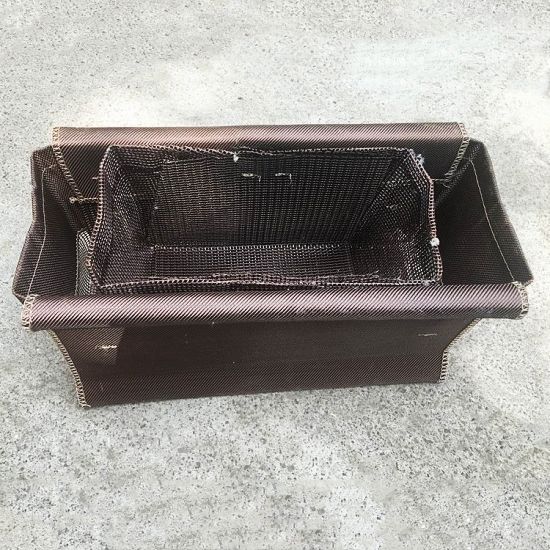

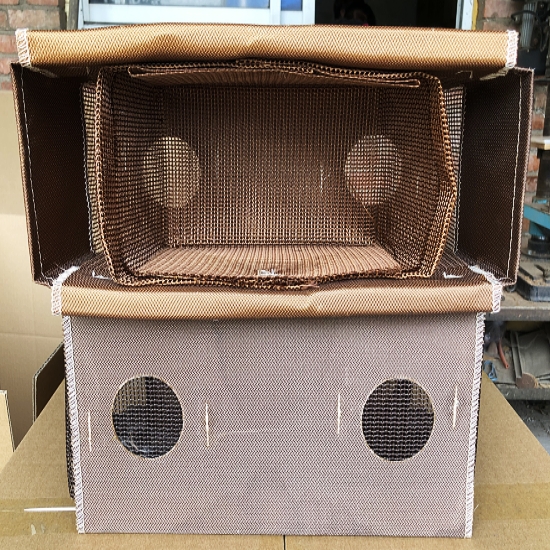

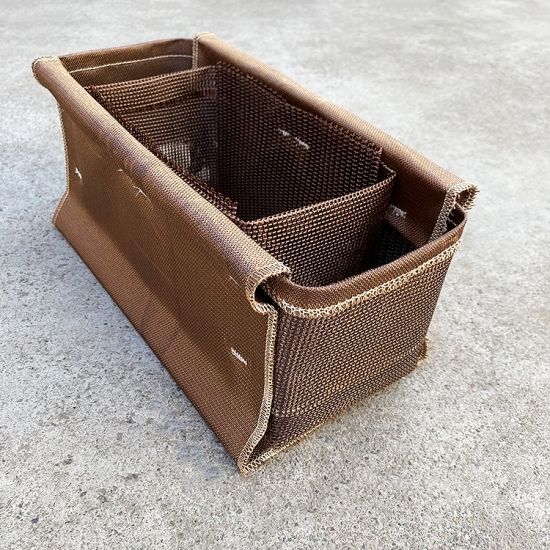

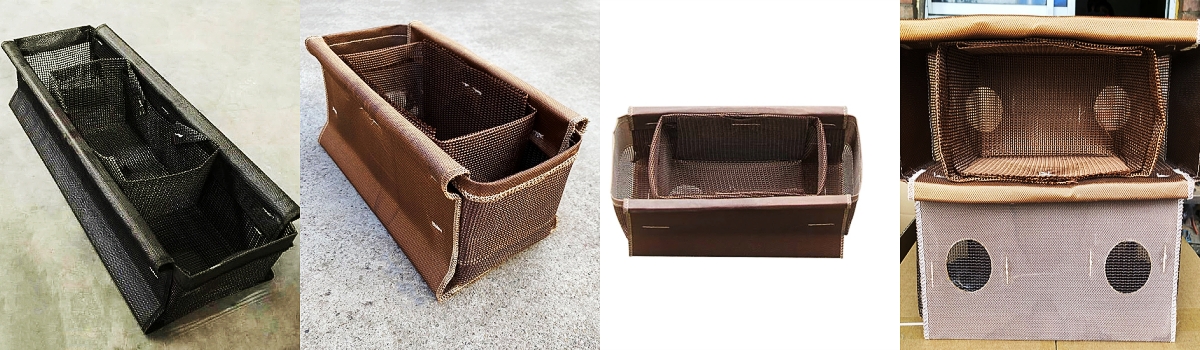

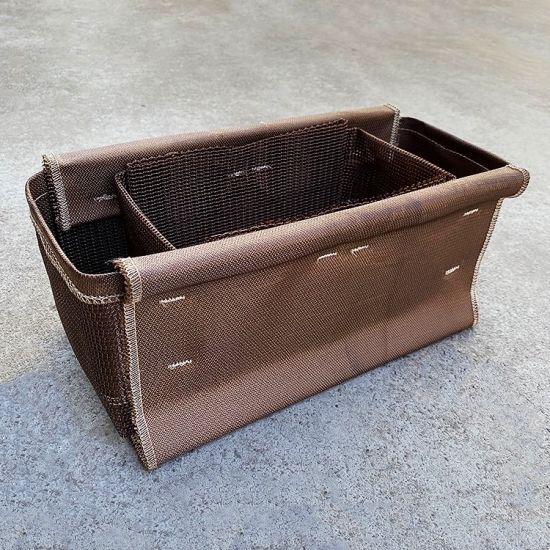

Fiberglass Filtration Mesh
Fiberglass Filtration & Shunt Combo bag is weaved by fiberglass yarn and through special process, its withstand temperature up to 1000 °C.
Three Main Features:
● New environmental protection material, does not burn during whole use process, no harm to human body.
● Advanced production equipment, warp and weft standard for base cloth, high temperature resistant coating mesh uniform, the finished product is exquisitely made without burrs.
● Both sides of the bag adopt square hole fixing device technology, more convenient operation and improve the working rate.
How to use:
Click here to get details information of user manual.
Parameter
The Production Technology of Fiberglass Filtration & Shunt Combo bag:
● Produced with new environmental protection material, does not burn during whole use process , no harm to human body.
● Advanced production equipment, warp and weft standard for base cloth, high temperature resistant coating mesh uniform, the finished product is exquisitely made without burrs.
● Both sides of the bag adopt square hole fixing device technology, more convenient operation and improve the working rate.
Technical Parameter Data:
| Type | Fiberglass Filtration & Shunt Combo Bag For Aluminum |
| Work Temperature | ≤1000℃ |
| Melting Point | 1100℃ |
| Color | White, Brown and Yellow |
| Normal Dimensions | 120x150x300mm, 120x150x330mm, 140x150x450mm, |
| Mesh Openning | 5mesh, 7mesh, 8mesh, 9mesh, 10mesh, 12mesh, 14mesh, 16mesh, 18mesh, 20mesh, 25mesh, and special specifications can be customized. |
| Application | Filtration & Shunt For All Aluminium and aluminium alloy products. |
| Work Time: | 4hours when flow ≤10 kg/min. |
| 1.5hours when flow ≤120 kg/min. | |
| Tensile Strength | 8KGS |
| Filter fineness | 5-50(μm) |
| Filter area | 100(m2) |
| OEM | Logo, Size and Shape of fiberglass filter bag, according to customer's requirement, and also drawing or samples. |
| Certificate | SDS |
| ISO9001:2015 |
Functions:
● Helps to reduce the turbulence of metal flow and improve the temperature distribution throughout the mold volume.
● Filter the molten metal and decrease in non-metallic inclusions and oxide films in the liquid metal.
● Ensure the removal of oxides or other debris suspended in the volume.
● Remove the harmful impurities such as bubbles, ash oxides, and various inclusions in aluminum molten liquid.
● Greatly improve the yield of aluminum castings, improve the quality of aluminum products.
● Avoid the problem of other metal components into aluminum solution.
● Does not affect the composition of aluminum alloy.
● Improve the hardness of aluminum casting product with more average surface hard and bending strength.
● Ensure the quality of aluminum castings.
This bag can also improve the mechanical properties of aluminum castings, can increase the hardness of the castings, and the surface hardness is uniform and improve the bending strength of the castings.
In this way, the manufacturer can produce terminal products with assured quality.
Compared with other kinds of filters, Fiberglass Filtration Shunt Combo Bag has the advantages of low price, convenient use, no change of metal composition, good filter slag and low gas output. Shunt bags can withstand higher temperature and more suitable for high temperature precision casting production.
Application:

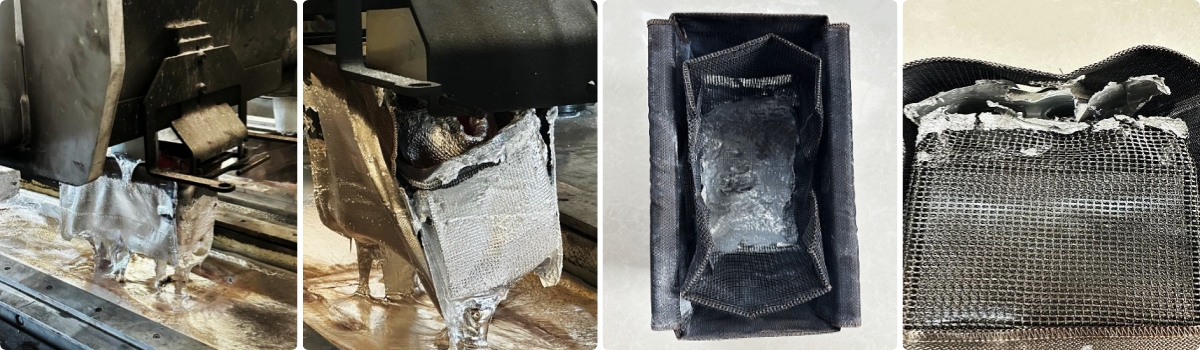

To filter molten aluminum in molds.
Distribute evenly molten aluminum in molds.
Helps to reduce the turbulence of metal flow and improve the temperature distribution throughout the mold volume.
