Nov. 17, 2024
Fiberglass Fabric Filter Cloth is specially developed and used for filtration, turbulence reduction and flow distribution improvement of non-ferrous alloys especially the molten aluminium.
It is weaved by special high-twist & high-strength alkali-free fiberglass yarn, coated with special resin, carbonized by high temperature and special post-treatment.
The maximum temperature resistance can reach 900 ℃.
There are two types:
● One is white color and soft without any coating.
● The other is brown color with coating by special resin.
Fiberglass Filter Cloth Used In Vertical Casting Tables.
Type | Fiberglass Filter Cloth in roll for aluminum filtration | |
Yarn type | E-glass fiberglass | |
Weave type | Leno & plain | |
Width/roll | 0.9m/1.0m ± 1cm and customized | |
Length/roll | 100m/150m/200m and customized | |
Thickness | 0.35-0.6mm | |
Weight | 150-350g/m2 | |
Mesh opening | 0.8*0.8/1.0*1.0/1.2*1.2/1.5*1.5/2.0*2.0/2.5*2.5mm and customized | |
Coating | No Coating | White color and soft fabric |
Coating with special resin | Brown color and hardness fabric | |
Work Temperature | 700-900℃ | |
Softening Temperature | 900℃ | |
Continuous Working Hours | <20Min.(700-800℃) | |
Gas Emit | ≤30cm 3/g | |
Loss on ignition | ≤3% | |
SiO2 | 58%-65% | |
Certificate | SDS | |
ISO9001:2015 |
This kind of mesh is produced from fiberglass filter cloth.
There are some key production processes as follow:
1. Choose right mesh opening.
2. Weave correct length and width.
3. Coat phenolic resin.
4. Cut pieces with correct dimensions: Length x width and Diameter.
5. Carbonized with accurate temperature.

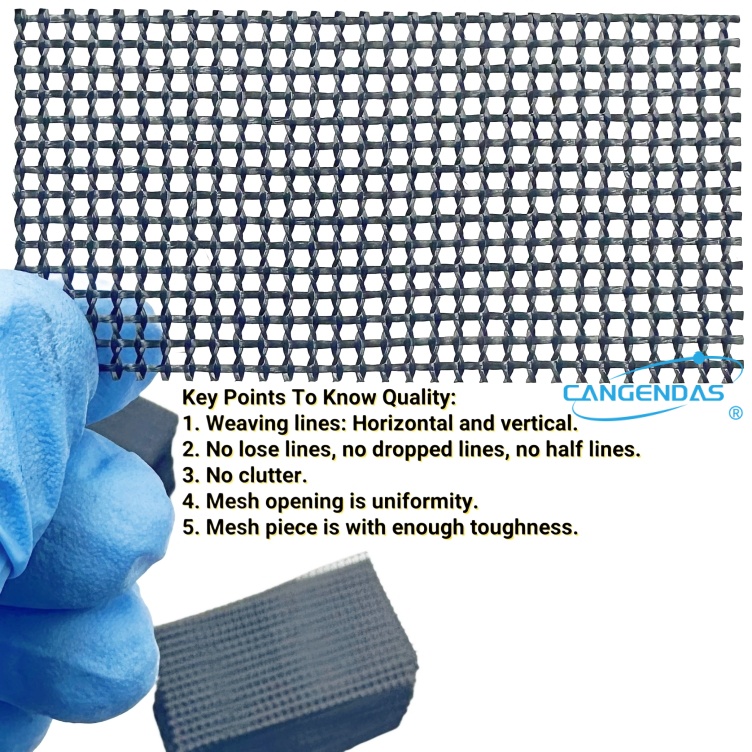

For quality inspection: Pieces dimensions, meshing opening, tolerance and toughness are the key points.
We, Hebei Cangchen, a professional manufacturer of fiberglass filter mesh, with own registered trademark: "CANGENDAS", but also OEM service will also be provided for all customers from the world.
We are a professional factory with ISO certificate and our filter mesh are inspected by strict way as per quality requirements.
Fiberglass filter mesh pieces carbonized after high temperature, it becomes easy to be bendy and folded, this is unqualified products. Because toughness is quite important factor that decides quality is good or not.
Our quality dept. will inspect this point pretty carefully before package in order to deliver the best quality to our clients.
Firstly, 100pieces per bundle, 100/200/300 and so on per plastic bag, then fixed quantity per carton. Cartons per pallet with wooden box to keep intact quality by air or sea shipment to our clients.
All dimensions and meshing opening can be customized just according to your samples or drawings, welcome to send enquiry to us to discuss cooperation!
