Core Information: Leno Weave of our fiberglass filter mesh!

What is fiberglass filter mesh?

It is woven with special high-twist & high-strength alkali-free E-glass fiberglass yarn, coated with special resin, carbonized by high temperature and special post-treatment.

The maximum temperature resistance can reach 900 ℃.

What is its weaving method?

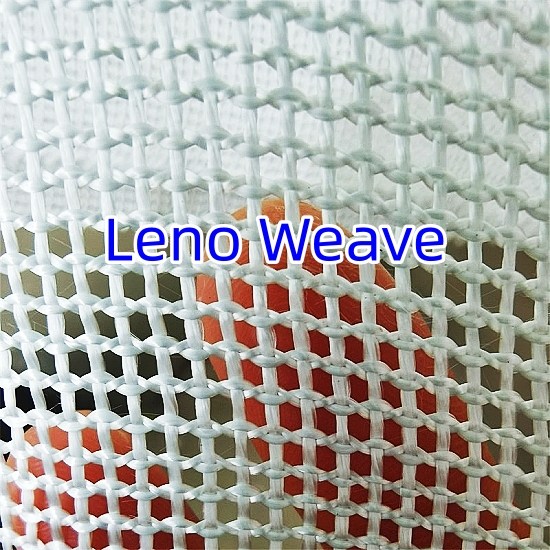

LENO is its weaving way, let's see from the photo.

The advantages of Leno Weave!

1. Compared to ordinary plain weave fabrics, the twill structure is more sturdy.

2. The warps are twisted together to form a chain-like or fixed twist group structure, which can effectively prevent the sliding of the warp and weft yarns and enhance the durability of the fabric.

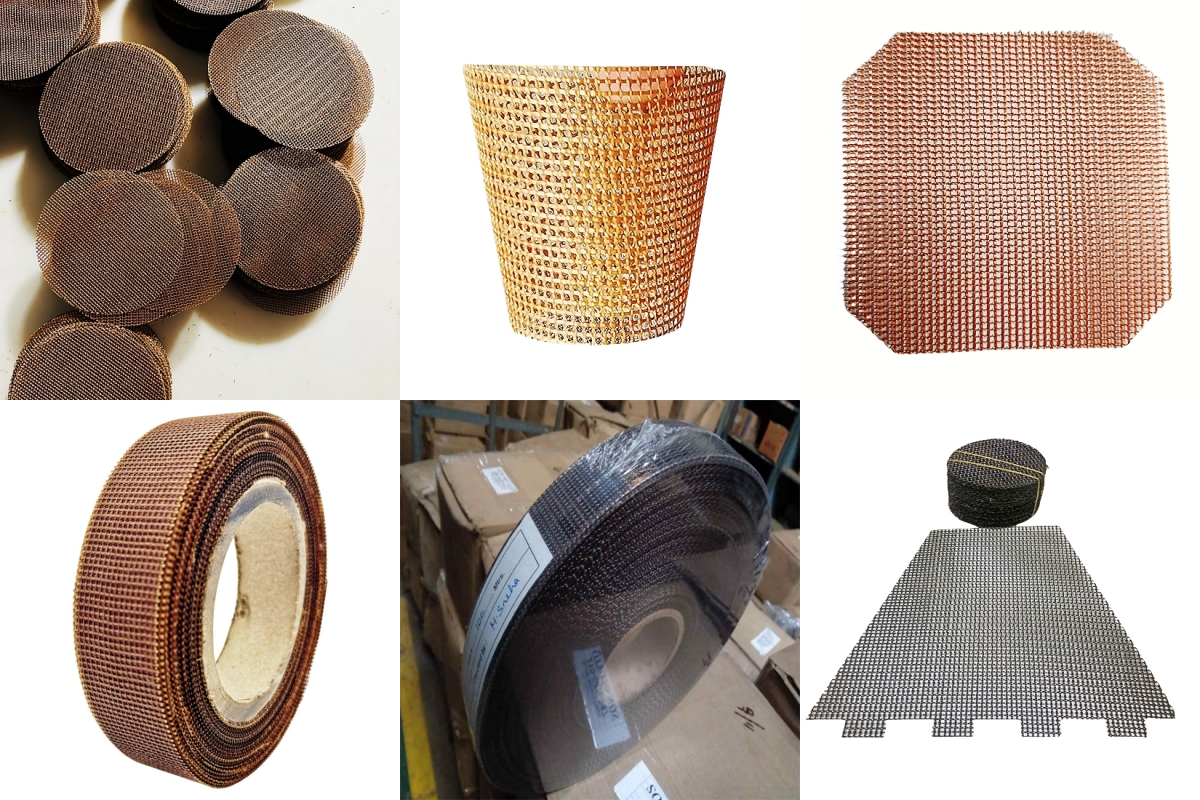

What are shapes of our fiberglass filter mesh?

● Filter cloth in roll (white & brown, without/with coating) : It can be fixed in the aluminum liquid flow tank, used for aluminum ingot, aluminum rod, aluminum strip and other continuous casting workshop to purify aluminum liquid.

● Cutting mesh (brown, coated with resin): Square, round, fan and other heteroideus mesh cutted just according to client’s requirements. Used for filtering aluminum castings and placed in the gating system.

● Cylinder, cap and other special shapes (brown or black, coated with resin or carbonized): used for low pressure casting, such as aluminum alloy wheels, engine cylinder head and so on.

● Smokeless filters (black carbonization treatment): no combustion, smokeless, low gas output during the filtration process, for high quality requirements of casting production, such as aluminum alloy piston.

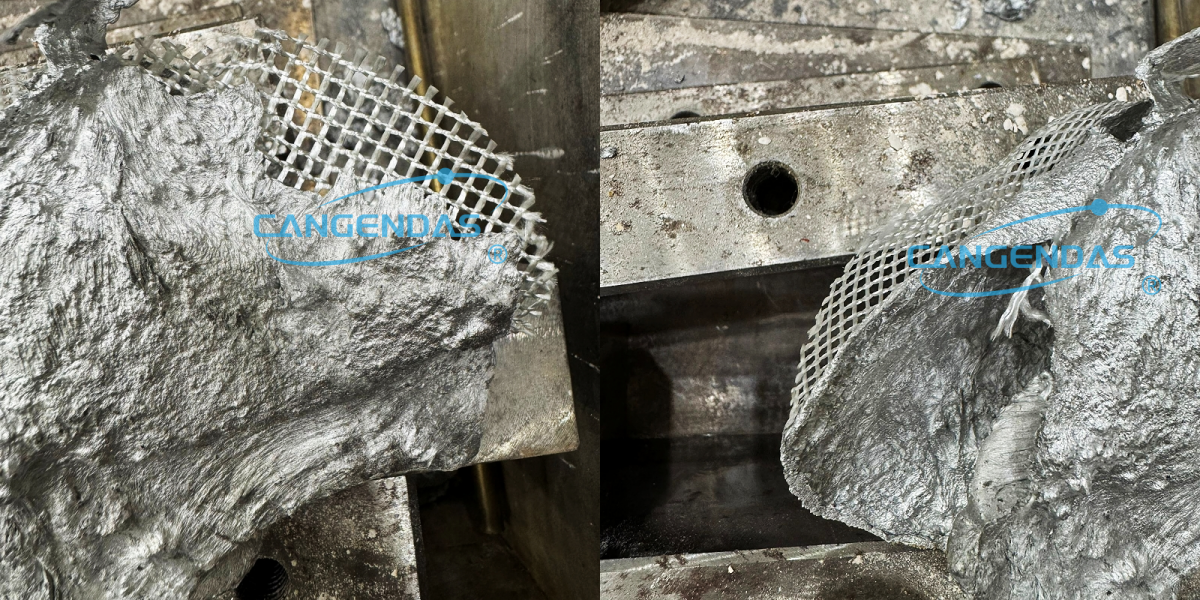

What is application of fiberglass filter mesh?

Widely used in automobile and motorcycle wheels, cylinder pistons, aluminum rods, aluminum materials, aluminum ingots, aluminum plates and precision casting of all types of aluminum alloy casting.

Effectively remove impurities, reduce turbulence and eliminate air bubbles, thereby improving the quality of castings and reducing costs.

At the same time does not pollute the aluminum liquid and affect the chemical properties of the metal.

Therefore, aluminum waste containing the filter mesh, aluminum liquid from sprue and the riser can be directly returned to the furnace for remelting, greatly reducing costs.
