Honeycomb ceramic filters

Feb. 22, 2024


Produced based Mullite with kinds of hole sizes, which can withstand heavy pouring thermal shock and extreme pouring temperature.

Honeycomb ceramic filters


● The cellular design also provides an engineered balance between flow rate and strength and it can effectively capture inclusions and reduce turbulence of the molten metal.

● The extruded ceramic filters have excellent properties of precise dimension, good thermal stability, high specific surface area and resistance to acid and alkali.


Widely used for ferrous and non-ferrous metal castings, ductile iron, gray cast iron, aluminum casting.


● It has a large metal flow rate and quite stable (different from ceramic foam filter whose flow rate gradually decreases with the increase of the number of inclusions being captured). Even if there is much inclusions in the filter, the normal use will not be influenced.

● It can effectively reduce the turbulent flow of metal liquid brought by casting, make the filling smooth and avoid the surface defects of casting.

● With very high dimensional accuracy, can be used for automatic placement of the filter on the production line.

● With very high temperature working strength, thermal shock resistance and resistance to metal flow impact ability. In the work without any slag or rupture phenomenon, to ensure the quality of molten metal filtration.

● With very high strength at room temperature and mechanical impact resistance. In use and transport without any rupture or damage, greatly facilitate the use of the filter operation.

● With a very significant filtering effect. It is much higher than the filter effect of fiber filter. Its remarkable filtering effect is related to the filtering mechanism of velocity criterion.

● With high chemical stability, is not affected by the acid alkaline metal liquid, does not change the chemical composition of metal liquid.

Physical technical data

MaterialCorieriteMulliteCorundum MulliteZirconia MulliteZirconia Corundum
Hole typeSquare, Round and Triangle
Holes/inch2100CPSI, 200CPSI, 300CPSI
Coefficient of thermal expansion(x10-6/℃)≤1.8≤4.0≤5.50≤5.50≤5.50
Softening temperature(℃)13901550160016501700
Compression Strength(Mpa)≥12≥15≥15≥15≥15
Max. Working temperature(℃)13501500155015801650
ApplicationAluminium alloy castingGrey cast iron, ductile cast iron and copper alloy castingStainless steel casting

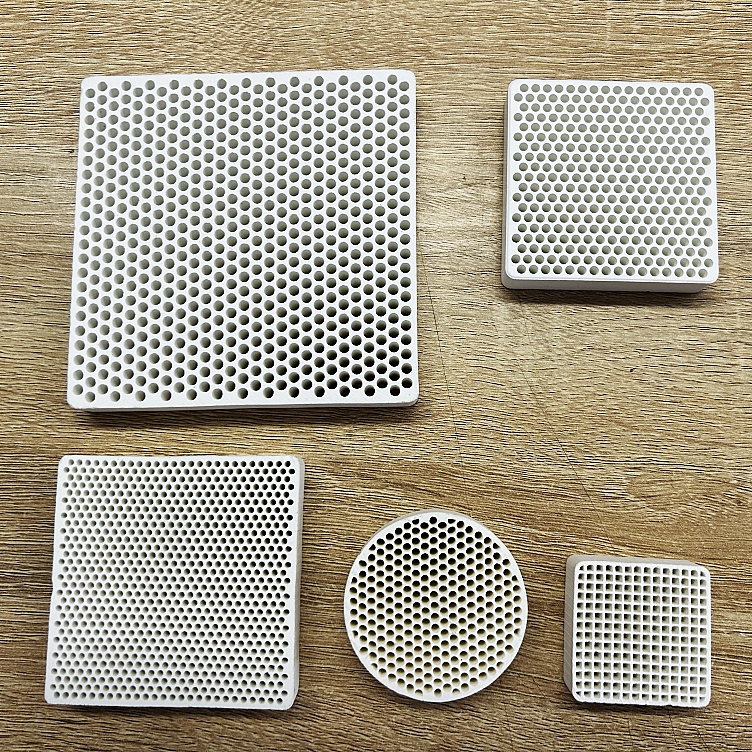

More shapes with different hole opening
