Mar. 15, 2023
Fiberglass Filter Cloth is weaved by alkali-free E-glass fiberglass yarn.
There are two types:
● One is white color and soft without any coating.
● The other is brown color with coating by special resin.
|Type||Fiberglass Filter Cloth in roll for aluminum filtration|
|Yarn type||E-glass fiberglass|
|Weave type||Leno & plain|
|Width/roll||0.9m/1.0m ± 1cm and customized|
|Length/roll||100m/150m/200m and customized|
|Mesh opening||0.8*0.8/1.0*1.0/1.2*1.2/1.5*1.5/2.0*2.0/2.5*2.5mm and customized|
|Coating||No Coating||White color and soft fabric|
|Coating with special resin||Brown color and hardness fabric|
|Continuous Working Hours||＜20Min.（700-800℃）|
|Gas Emit||≤30cm 3/g|
|Loss on ignition||≤3%|

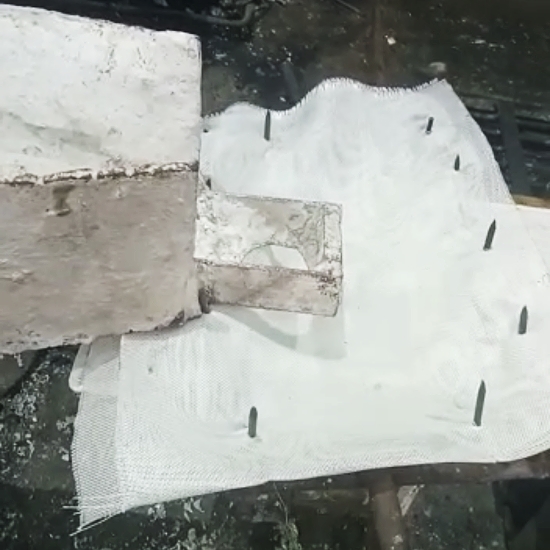

● Used in molten aluminium launder or holding furnace sprue, transferring from ladle to holding furnace etc.
● Effectively remove the inclusions and aluminum oxide films from molten aluminium liquid.
● Easy to install and use
● Low cost
● Effective filtering effect
● Cost effective and easy to use for aluminium filtration
Application of silicon carbide ceramic foam filters
Mar. 24, 2023
High Temp Carbonized Fiberglass Mesh Filter
It is woven with special high-twist & high-strength alkali-free fiberglass and special post-treatment. The maximum temperature resistance can reach 900 ℃.
The cap-style is woven with special high-twist & high-strength alkali-free fiberglass and special post-treatment. The maximum temperature resistance can reach 900 ℃.
Silica Fiberglass Filtration Filter for Steel(Thick Type)
It is weaved by high silica fiberglass yarn and coated with special refractory coating. It can effectively remove slag, refractory particles and non-metallic inclusions from molten metals. Made from specially treated silica yarns, the thick type silica mesh filters are capable of withstanding pouring temperature up to 1620℃.
Aluminium Casting Fiberglass Filtration Filter Pouch/Bag
Fiberglass Filtration Pouch is weaved through special process, its withstand temperature up to 1000 °C. Apply to filter and evenly distribute molten aluminum in molds.
Silicon Carbide Ceramic Foam Filter
SIC (silicon carbide) ceramic foam filters are developed and manufactured for the filtration of cast iron and non ferrous alloys.
Mainly used for the filtration of molten aluminium and alloys in foundries and cast houses.
Refractory Reticulated Structure Zirconia Ceramic Foam Filter
Refractory Reticulated Structure Zirconia Ceramic Foam Filters are the best choice for filtering of determined for filtering of steel and steel alloys up to the temperature of 1700℃. Filters are recommended especially for high quality grades of alloys.
Ceramic Foam Filter Plate For Aluminium and Alloy
Ceramic Foam Filter Plate For Aluminium and Alloy Filtration
