Ceramic Foam Filter

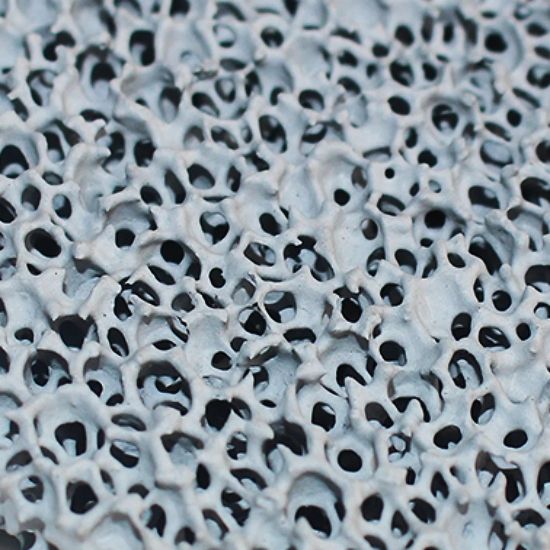

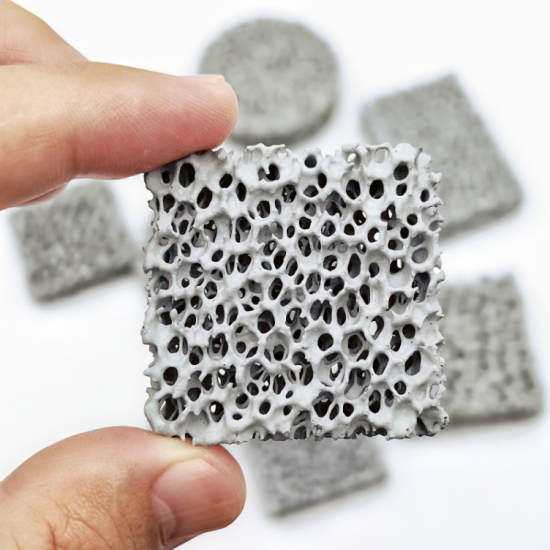

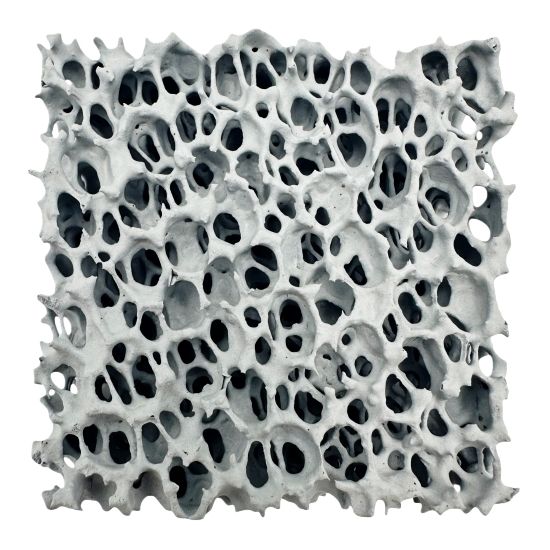

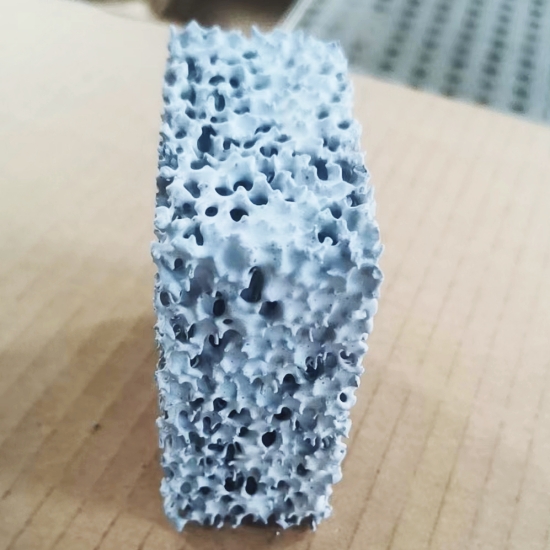

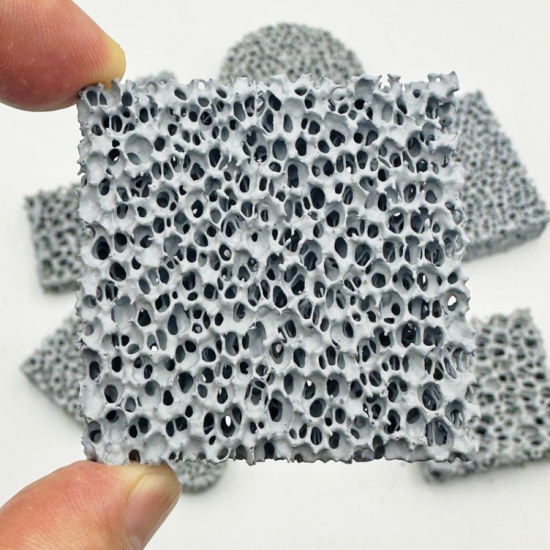

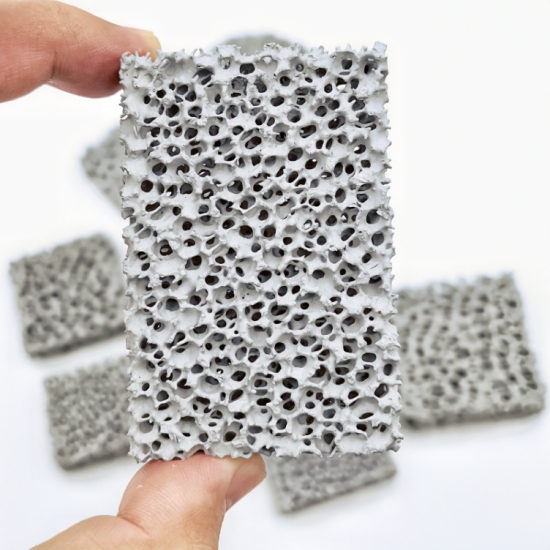

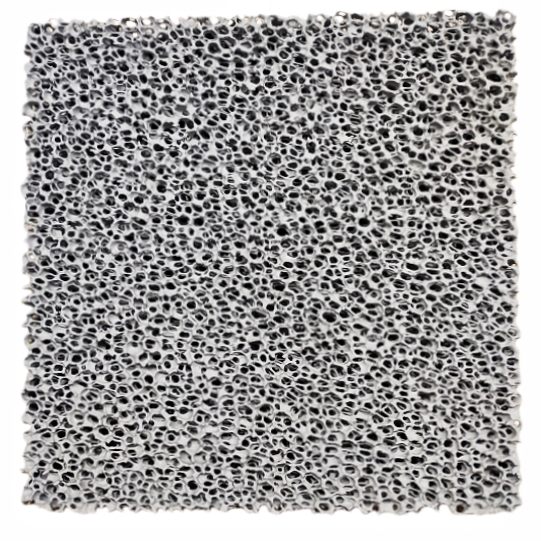

SIC ceramic foam filter with foam sponge three-dimensional mesh interworking structure can make the metal liquid reflect the rectification, mechanical screening, filter cake, adsorption filtration mechanism to effectively improve the purity of metal liquid, reduce scrap rate, reduce machining losses so as to improve production efficiency and reduce production costs.
SIC ceramic foam filter has the characteristics of high strength, good thermal stability, large specific surface area and high dimensional accuracy.
SIC ceramic foam filter mainly used for filtering and purifying nodular cast iron, gray cast iron, aluminum, copper and other alloy metal liquid filtration with operating temperature 1530°C.
Parameter
SIC (silicon carbide) ceramic foam filters are developed and manufactured for the filtration of for the filtration of nodular cast iron, gray cast iron, aluminum, copper and other alloy metal liquid. As the most advanced filter type with the higher filtration efficiency, It can effectively reduce inclusions and turbulence of molten metal, ensuring purified molten metal goes into the mould cavity with improved flow rates.
Using the unique formula and manufacturing process, SIC ceramic foam filters have the excellent thermal shock, chemical and high temperature resistance up to 1530°C.
| Type | SIC ceramic foam filter for iron |
| Work Temperature | ≤1500℃ |
| Color | Gray Black |
| PPI | 8/10/15/20/25/30PPI(PPI=pores per inch) |
| Porosity | 80-90% |
| Compressive strength | ≥1.0Mpa(Room temperature) |
| Bulk Density | 0.36-0.5g/cm3 |
| Thermal Shock Resistance | 1200℃---room temperature 6 times |
| Certificate | ISO9001:2015 |
| REACH & RoHS |
| Spec./mm | Max.filter capacity/Kg | Normal flow of metal liquid Kg/s | ||
| Ductile Iron | Grey Cast Iron | Ductile Iron | Grey Cast Iron | |
| 30*50*22 | 30 | 60 | 3 | 4 |
| 40*40*22 | 32 | 64 | 3 | 4 |
| 50*50*22 | 50 | 100 | 4 | 6 |
| 75*50*22 | 75 | 150 | 6 | 9 |
| 100*50*22 | 100 | 200 | 8 | 12 |
| 75*75*22 | 110 | 220 | 9 | 14 |
| 100*75*22 | 150 | 300 | 12 | 18 |
| 100*100*22 | 200 | 400 | 16 | 24 |
| 150*100*22 | 300 | 600 | 24 | 36 |
| 150*150*22 | 450 | 900 | 36 | 54 |

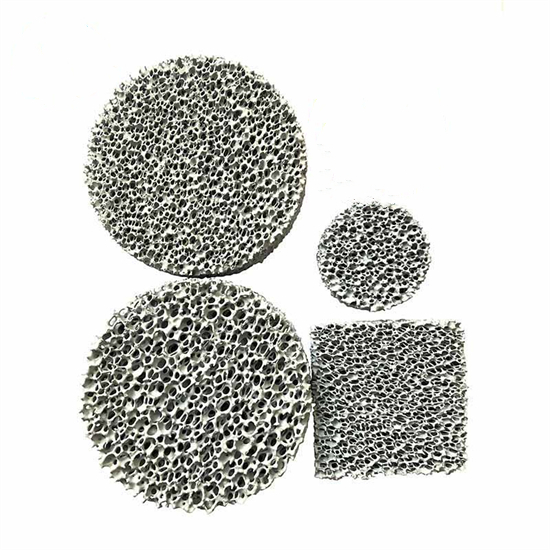

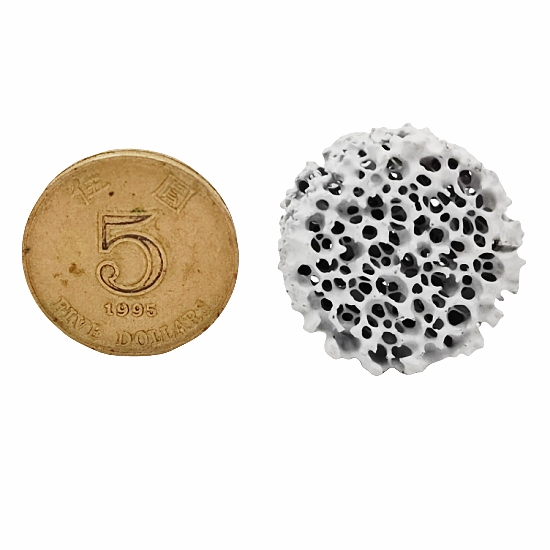

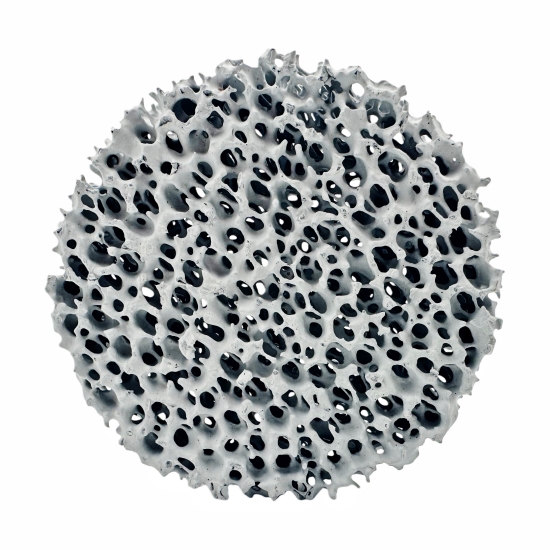

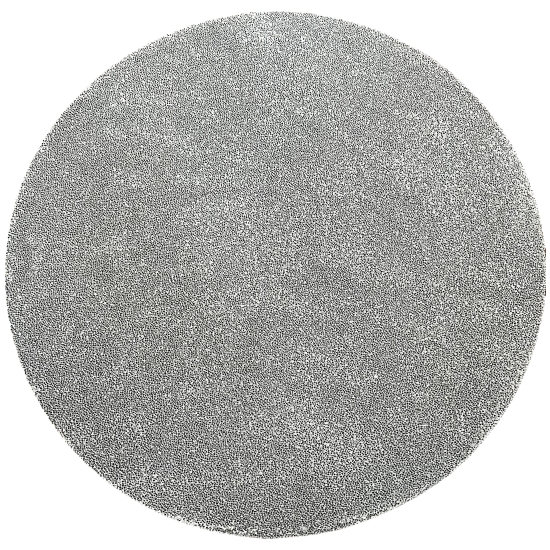

| Φ40*11 | 20 | 40 | 2 | 3 |
| Φ50*22 | 35 | 70 | 3 | 4.5 |
| Φ60*22 | 50 | 100 | 4.2 | 6.5 |
| Φ70*22 | 75 | 150 | 5.5 | 8.8 |
| Φ80*22 | 100 | 200 | 7.2 | 11 |
| Φ90*22 | 120 | 240 | 9 | 14 |
| Φ100*22 | 140 | 280 | 11 | 17 |

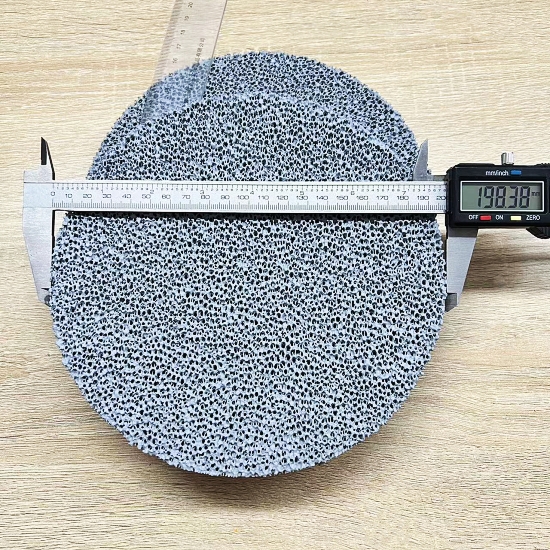

| Φ150*22 | 350 | 700 | 25 | 38 |

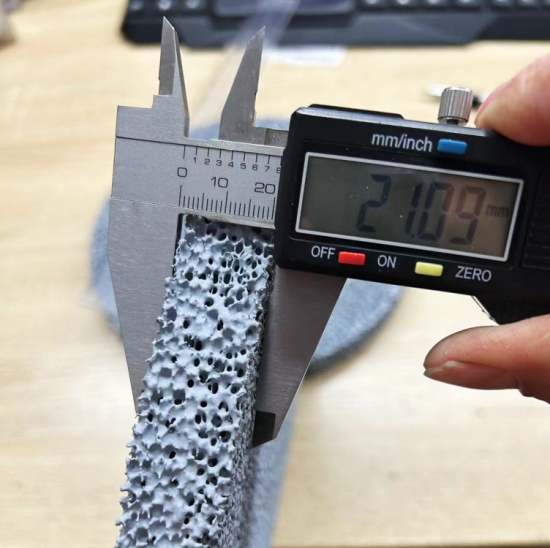

SIC ceramic foam filter produced with imported raw materials from Germany and advanced laser cutting technology, which can meet the requirements of manual modeling and mechanized production line with higher efficiency, and ensure the quality standard requirements of casting factory productization. Excellent raw materials and advanced production technology ensure quite stable dimensional tolerance of our ceramic foam filters.
Application:
Filtration of nodular cast iron, gray cast iron, aluminum, copper and other alloy metal liquid.
