Fiberglass Filtration Mesh

Fiberglass Filtration Mesh

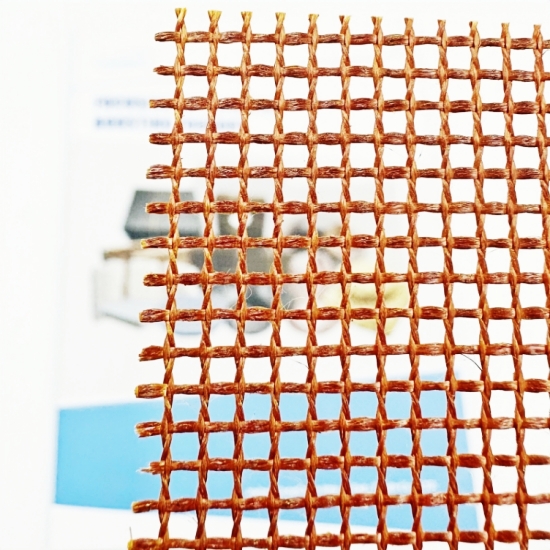

High Silica Fiberglass Fabric Filter Mesh For Steel Iron And Copper (Thick Type)

High Silica Fiberglass Fabric Filter Mesh is weaved by high silica fiberglass yarn and coated with special refractory coating.


It can effectively remove slag, refractory particles and non-metallic inclusions from molten metals. Made from specially treated silica yarns, the thick type silica mesh filters are capable of withstanding pouring temperature up to 1620℃.


Silica mesh filter are ideal for in-mold filtration of gray, malleable, white, compacted graphite and ductile cast irons, as well as non-ferrous aluminum and copper-based metal alloys and many types of small scale steel casting filtration.


Parameter

In cast iron, aluminum, steel castings, the slag contained in the metal solution is not easy to clean, it will cause slag holes, pores and other defects and waste. The usage of High Silica Fiberglass Fabric Filter Mesh becomes so important to solve the said problems. The filter mesh can be cut into any specification, placed on the sprue parting surface of the box pressing, such as the combination of filter net and slag bag, its effect will be better.

TypeHigh Silica Fiberglass Filter Mesh For Steel Iron And Copper
Work Temperature≤1620℃
Softening Temperature1700℃
Continuous Working Hours<10 Min.(1400-1450℃)
<4 Min.(1450-1560℃)
<15 Seconds.(1560-1620℃)
Gas Emit≤60cm 3/g
Thickness1.5mm
Weight520-580 g/m2
Weave PatternMock Leno

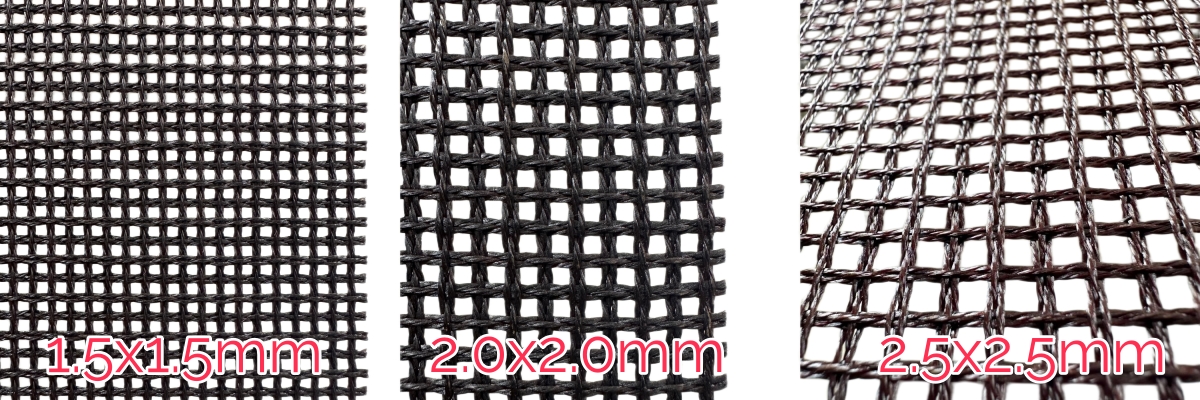

Hole Size1.5*1.5/2.0*2.0/2.5*2.5mm
Mesh Opening ChosenWhite Iron1.5mm
Gray Iron(Pour weight≤100kgs )1.5mm
Gray Iron(Pour weight≥100kgs )2.0mm
Malleable Iron1.5mm
Compacted Graphite Iron1.5mm & 2.0mm
Ductile Iron(Pour weight ≤ 100kg)2.0mm
Ductile Iron(Pour weight ≥ 100kg)2.5mm
Carbon Steel1.5mm
Stainless Steel1.5mm
Brass1.5mm & 2.0mm
Bronze1.5mm & 2.0mm
CertificateMSDS
ISO9001:2015



High Silica Fiberglass Fabric Filter Mesh is a high-performance industrial filter material that is widely used in various industries, including chemical, pharmaceutical, metallurgical, and petrochemical. It is made of high-quality silica fiberglass fabric, which offers excellent temperature resistance, chemical resistance, and high strength. The high silica content in the fabric also makes it a superior material for filtration applications that require high precision and efficiency.


View More Fiberglass Filter Products.


Features of High Silica Fiberglass Fabric Filter Mesh:

A.High temperature & corrosion resistance

B.High intensity & high pass rate

C.Good filtration & purification effect

D.Diverse sizes & Customized service


Application of High Silica Fiberglass Fabric Filter Mesh For Steel Iron And Copper

The High Silica Fiberglass Fabric Filter Mesh For Steel Iron And Copper are made by special weaving and post-processing. Products have become a series, advanced technology, stable quality. Widely used in automobiles, motorcycle hubs, cylinder pistons, aluminum rods, aluminum ingots, aluminum plates and all kinds of aluminum alloy parts casting filters.

High Silica Fiberglass Fabric Filter Mesh For Steel Iron And Copper


High Silica Fiberglass Fabric Filter Mesh Key Points of Usage

1. Use area of filter net: F1 = F2 / AxB.

● F1: the cross-sectional area of the casting system.

● F2: the original cross-sectional area of the casting system.

● A: the porosity of the filter screen, generally 50-60%.

● B: the filtration rate of filter screen, generally 60-80%.

Therefore, the cross-sectional area of the casting system is generally 2-4 times that of the casting system without the casting net.

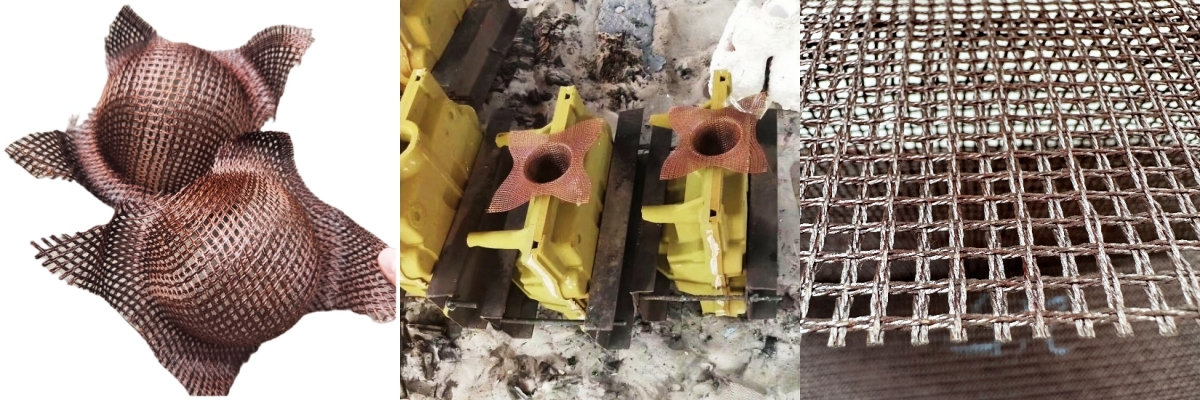

2. Position of filter screen:

High Silica Fiberglass Fabric Filter Mesh For Steel Iron And Copper

● Place the filter under the sprue cup;

● Placed on the parting surface under the sprue;

● Three different positions on the lap surface of the runner.


Contact Us Today.

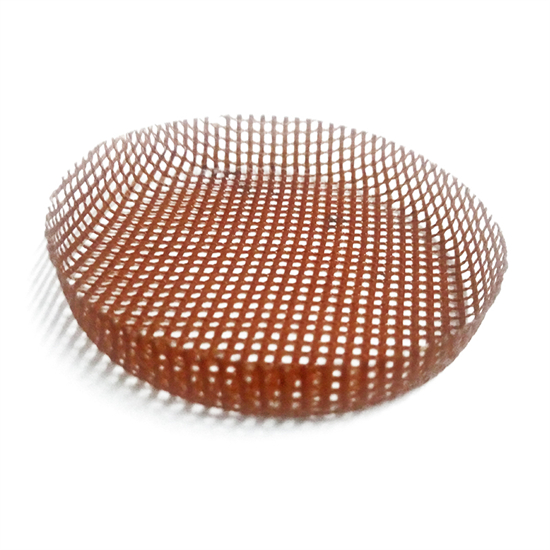

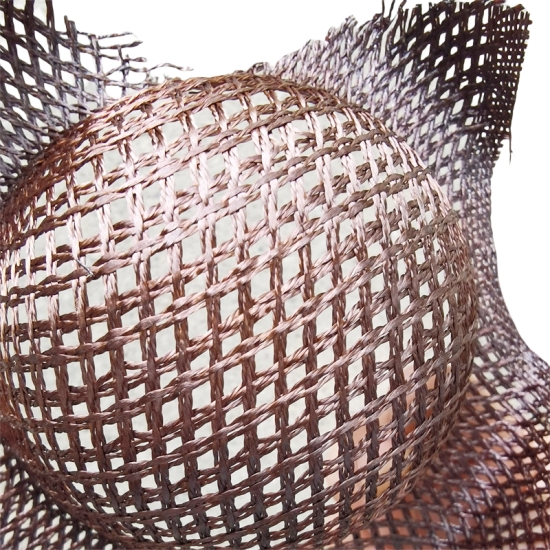

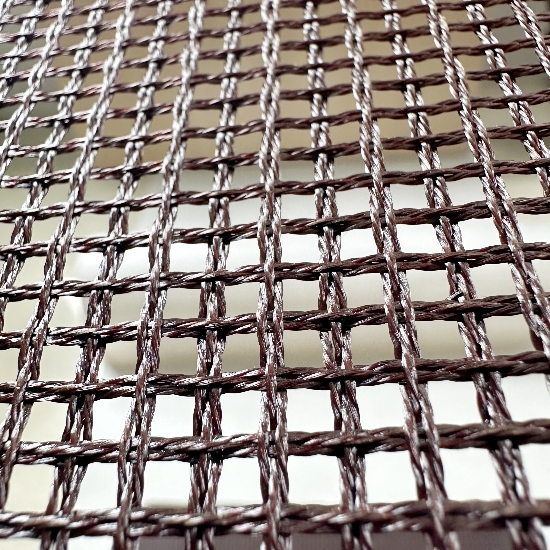

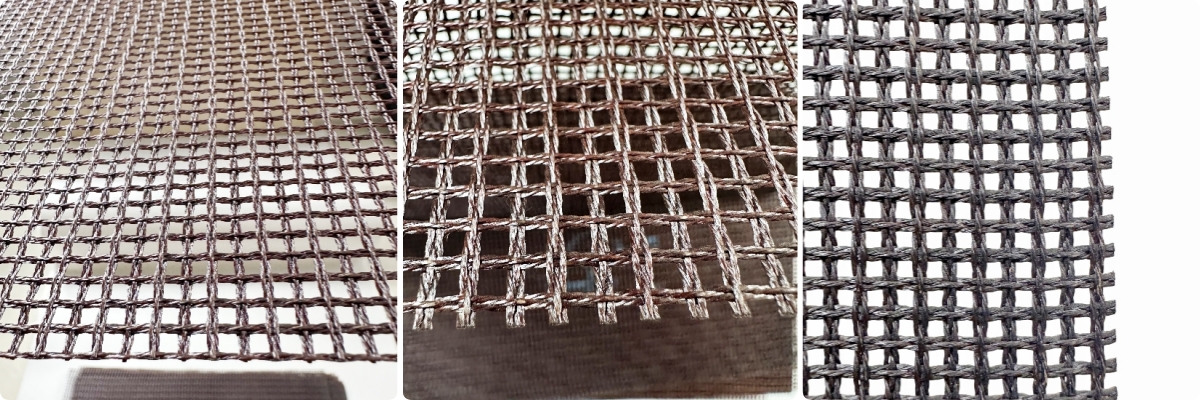

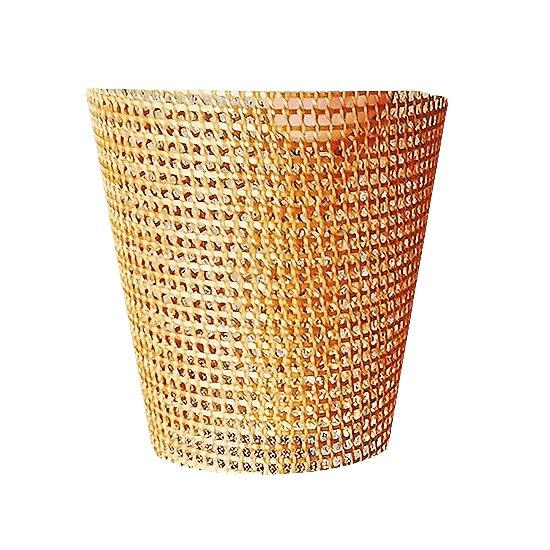

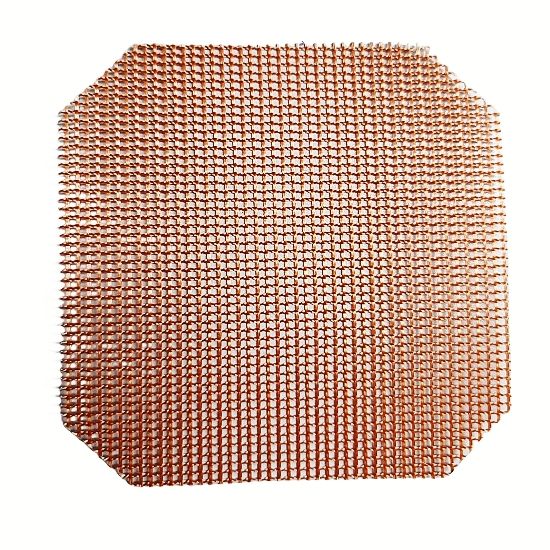

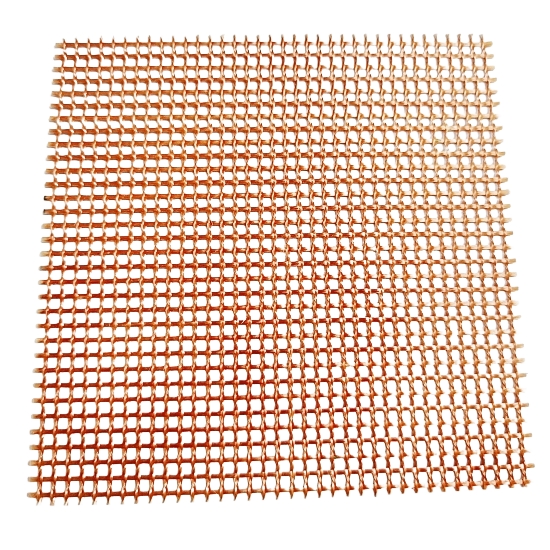

High Silica Fiberglass Fabric Filter Mesh pictures and packaging display:

High Silica Fiberglass Fabric Filter Mesh For Steel Iron And Copper


The use of high silica fiberglass fabric filter mesh offers several advantages over traditional filter materials, including:

  • Temperature Resistance: High silica fiberglass fabric filter mesh can withstand high temperatures, making it ideal for applications that require high-temperature filtration.

  • Chemical Resistance: The high silica content in the fabric makes it resistant to a wide range of chemicals, including acids, alkalis, and solvents.

  • High Strength: High silica fiberglass fabric filter mesh has high tensile strength, making it a durable and long-lasting material.

  • High Efficiency: High silica fiberglass fabric filter mesh has excellent filtration efficiency, making it an ideal material for applications that require high precision and efficiency.


High Silica Fiberglass Fabric Filter Mesh is a versatile and high-performance industrial filter material that finds its application in various industries. Its unique properties of temperature resistance, chemical resistance, high strength, and high efficiency make it an ideal material for filtration applications that require high precision and performance.

Application:

Chemical Industry: The chemical industry is one of the primary users of high silica fiberglass fabric filter mesh. It is used in the filtration of various chemicals, including acids, alkalis, and solvents.

Metallurgical Industry: In the metallurgical industry, high silica fiberglass fabric filter mesh is used in the filtration of molten metal. It helps to remove impurities from the metal and improve its quality.

Petrochemical Industry: In the petrochemical industry, high silica fiberglass fabric filter mesh is used in the filtration of various liquids, including crude oil, diesel, and gasoline.

Pharmaceutical Industry: The pharmaceutical industry uses high silica fiberglass fabric filter mesh in the filtration of various chemicals and drugs. It is also used in the production of medical devices.
